Non-Parameterized
The called function in this implementation looks like:
sauterschwabintegral(sourcechart, testchart, integrand, accuracy, accuracy_pd).
sourcechart and testchart can be created by
testchart = simplex(P1,P2,P3); sourcechart = simplex(P4,P5,P6).
The order of the input arguments within the simplex() function does not matter.
simplex() generates the mapping and needs input arguments of type SVector{3,Float64}; the points P1 to P6 can be created by
P = point(x,y,z).
x, y and z are the coordinates of that particular point and point() creates a position vector which is of type SVector{3,Float64}.
The integrand must be defined as a function with two input arguments; the input arguments must be 3D vectors. The name of this function is the input argument.
Later on, the last argument accuracy will be discussed.
Since simplex() and point() are functions of CompScienceMeshes, CompScienceMeshes does not just have to be installed on the user's machine, but also be available in the current workspace; the same applies for this package as well. The two packages can be made available by
using SauterSchwabQuadrature and using CompScienceMeshes.
These two commands must always be run at the beginning, if using this type of implementation.
sauterschwabintegral() first modifies testchart and sourcechart with respect to the order of the arguments, within their simplex() functions. Secondly, depending on how many vertices both charts have in common, it generates an object of some type that contains the information of the accuracy and the integration strategy. After all of this has been done, this function will call another function with input arguments of the two modified charts, the original integrand and that new object.
To understand the arguments accuracy, accuracy_pd and the examples stored in the examples folder, the 'another called function' will be presented next:
Integration

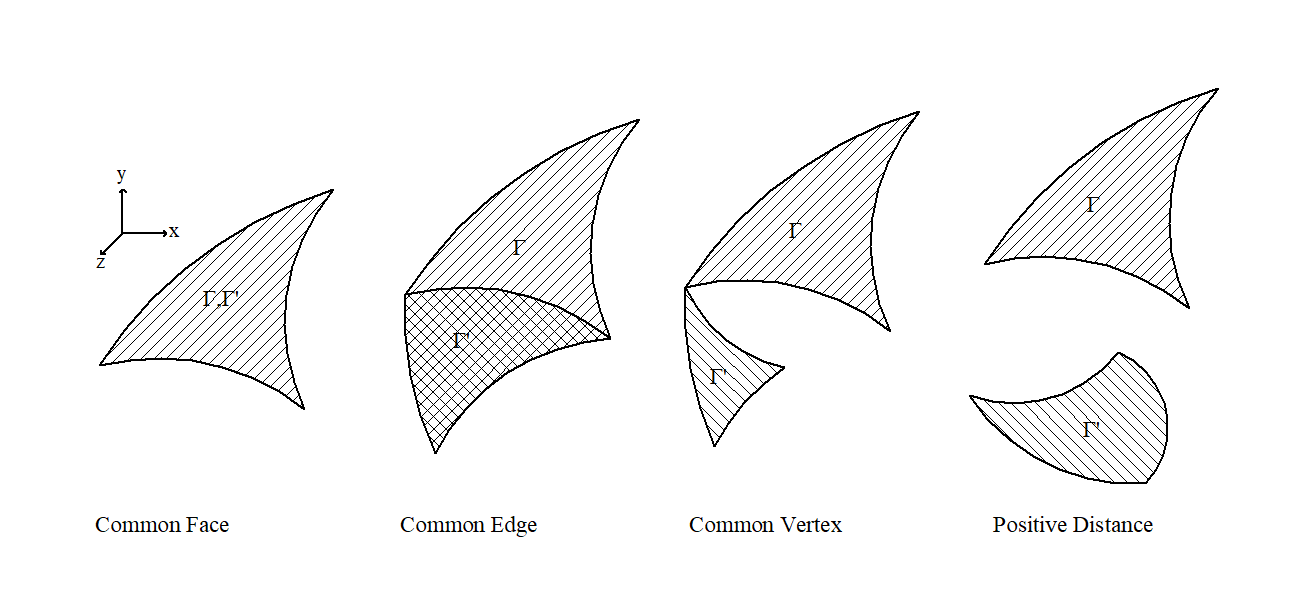

According to item 1 on the homepage, four different constellations of the two triangles are possible:
- Equal triangles $\to$ Common Face
- Two vertices in common $\to$ Common Edge
- One vertex in common $\to$ Common Vertex
- Both triangles do not touch at all $\to$ Positive Distance
As each of those four constellations has its own integration method (because of a possible singularity in the kernel), the function sauterschwabintegral() has to call another function that handles the situation suitably; hence, it has four methods.
In the case sauterschwabintegral() has to deal with a situation of the first three cases, the two area-integrals will be transformed to four 1D integrals from zero to one; accuracy gives the number of quadrature points on that integration path, therefore, accuracy is of type unsigned Int64. In the case sauterschwabintegral() has to deal with a situation of the last case, accuracy_pd, which is again of type unsigned Int64, will be considered. It is a rule of how many quadrature points are created on both triangles. accuracy_pd =
- 1 $\to$ 1
- 2 $\to$ 3
- 3 $\to$ 4
- 4 $\to$ 6
- 5 $\to$ 7
- 6 $\to$ 12
- 7 $\to$ 13
- 8 $\to$ 36
- 9 $\to$ 79
- 10 $\to$ 105
- 11 $\to$ 120
- 12 $\to$ 400
- 13 $\to$ 900
quadrature point(s) is(are) created on each triangle.
The user is now able to understand the examples in the '...non_parameterized.jl' files, or rather their titles. The order of the points within the two simplex() functions of Sourcechart and Testchart can be changed arbitrarily, the result will always remain the same. For those, who are interested in the 'called function', or want to skip sauterschwabintegral() and call the integration directly, which is actually only a sorting process, may read on now.
The called function by sauterschwabintegral() is:
sauterschwab_nonparameterized(sourcechart, testchart, integrand, method).
sourcechart and testchart are the modified versions of the original charts; integrand is the same as at the beginning, and method is that created object. The type of method is responsible for what method of sauterschwab_nonparameterized is chosen. The four methods will be listed now:
Common Face
$\Gamma$ and $\Gamma'$ are equal; hence, sourcechart and testchart are equal as well. The two charts have to be created by
testchart = sourcechart = simplex(P1,P2,P3);
where, P1, P2 and P3 are the vertices of that particular triangle. Note, that both charts must be equal, which means that the first argument of both charts must be equal, the second argument of both charts must be equal, and the last argument of both charts must be equal.
The last argument can be created by
cf = CommonFace(x).
cf is an object of type CommonFace(); x is the number of quadrature points on the integration path $[0,1]$.
An example for this case can be found at the end of the common_face_non_parameterized.jl file in the examples folder.
Common Edge
$\Gamma$ and $\Gamma'$ are now different; hence, sourcechart and testchart are different as well. The two charts have to be created in the following manner:
testchart = simplex(P1,P2,P3); sourcechart = simplex(P1,P4,P3).
Again, the order of the input arguments must be taken into account: The first argument of both charts must be equal, and the last argument of both charts must be equal. Consequently, the first and the last argument are the vertices which both triangles have in common.
The last argument can be created by
ce = CommonEdge(x).
ce is an object of type CommonEdge(); x is the number of quadrature points on the integration path $[0,1]$.
An example for this case can be found at the end of the common_edge_non_parameterized.jl file in the examples folder.
Common Vertex
The two triangles and charts are again different. The two charts have to be created in the following manner:
sourcechart = simplex(P1,P2,P3); testchart = simplex(P1,P4,P5).
Again, the order of the input arguments must be taken into account: The first argument of both charts must be equal, the order of P2 and P3 with respect to sourcechart, and the order of P4 and P5 with respect to testchart, does not matter. Consequently, the first argument is the vertex both triangles have in common.
The last argument is created by
cv = CommonVertex(x).
cv is an object of type CommonVertex(); x is the number of quadrature points on the integration path $[0,1]$.
An example for this case can be found at the end of the common_vertex_non_parameterized.jl file in the examples folder.
Positive Distance
As the triangles do not touch at all, the integration can directly be calculated with Gauss´s quadrature. Therefore, the order of the arguments within the two simplex() functions do not matter.
The last argument can be created by
pd = PositiveDistance(x).
pd is an object of type PositiveDistance(); x is the rule of how many quadrature points are created on both triangles.
An example for this case can be found at the end of the positive_distance_non_parameterized.jl file in the examples folder.
